Amazon Spheres Architectural Design & Prototyping Process

If you haven’t been to the Seattle area recently, you may not be familiar with the Amazon Spheres. These sci-fi co-working offices showcase a fantastic use of rapid prototyping technologies like laser cutting and 3d printing in the early design stages, used to build an initial scale model of the “catalan” modules, which give the domes a pentagonal skeleton structure.

Source: Wall Street Journal
Architectural firm: NBBJ

Building up parts on the pentagonal scale model structure using laser cut wood and paper cardstock:

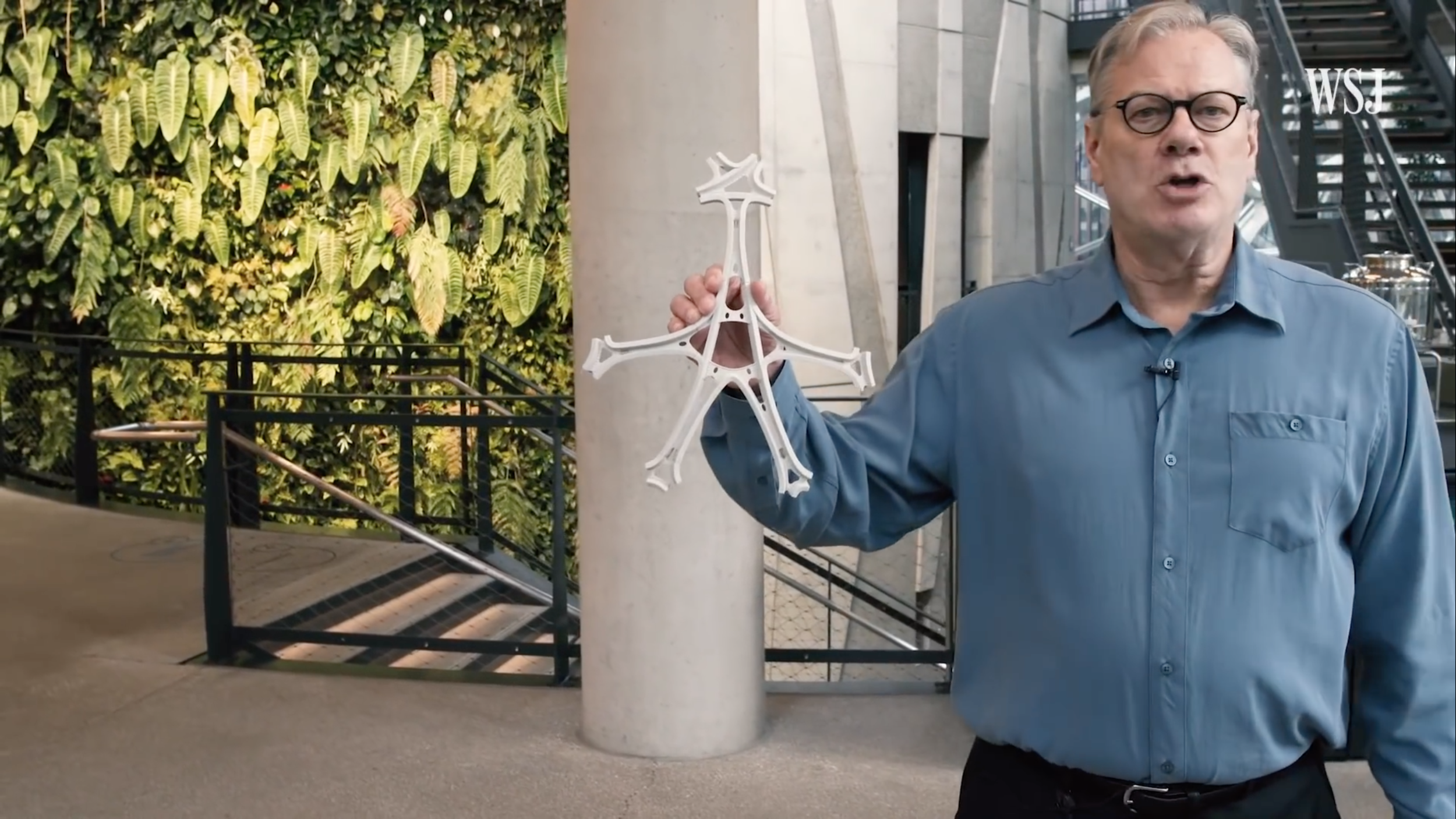

These laser cut parts are later transformed into 3d Printed Catalan Module - or 'elongated pentagon' building block:

Finally, the small scale 3d-printed prototypes are then realized as 1:1 full scale interlocking steel structural parts:

The space is designed to be an alternate environment for amazon executives and employees, giving them a natural green space to work from — all in the sake of helping spark productivity, creativity, and reducing stress:
